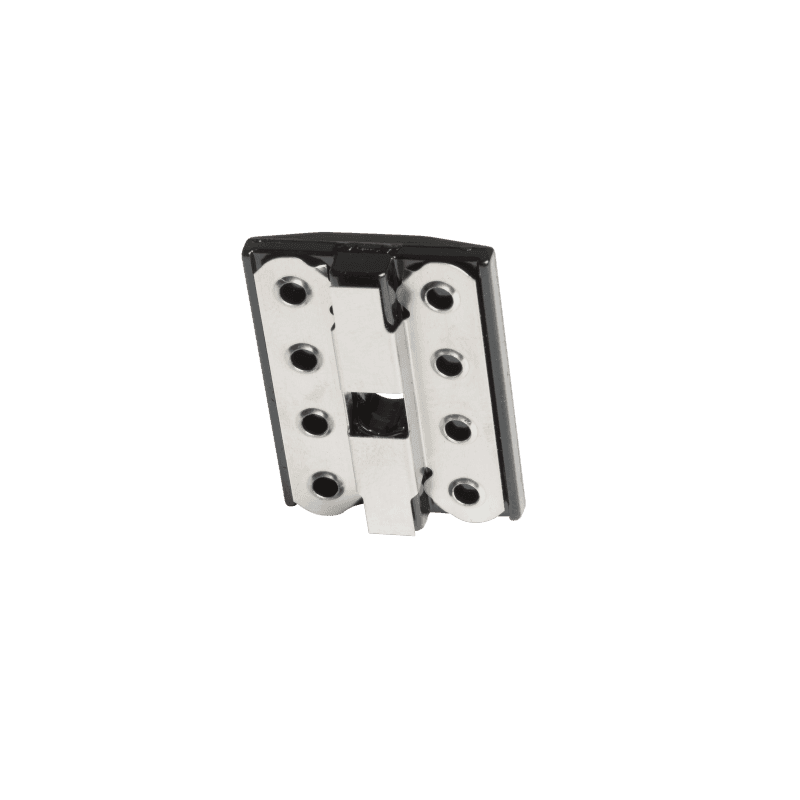

FlatFix (Fusion) Middle Clamp Universal Black

Compared to the previous middle clamp (1003020 and 1003951), this new centre clamp is equipped with a clip under the clamping plate. The clip offers the integration of potential equalisation of the module frames in the same installation step as clamping the modules to the mounting system. The clamp is designed to penetrate the insulating top layer of the aluminium module frame. This means that the earthing rings will no longer be needed and can be removed from the bill of materials and from the installation process.

BENEFITS

• Strong, stiff, good grip area
• Tested and certified by UL2703
• Save time; clips are pre-assembled Saves time;
• Equipotential bonding during clamping
• SKU saving; earthing rings are no longer needed
• Function quality; Clips penetrate to core material
